YCBZ-125 Change-over Switch


Video

YCBZ-125 Change-over Switch Featured Image

YCBZ-125 Change-over Switch

General
The Changeover Switch can switch on,load and break the circuit under normalconditions,using as Switch Disconnectors
Standard:IEC 60947-3

Contact Us

Product Details

Responsive 3D Model

YCBZ-125-product-description1

Application

The Changeover Switch can switch on, Load and break the circuit under normal conditions,usingas Switch Disconnectors.
Standard: IEC 60947-3

Specifications

Parameter	Data
Rated Voltage	240/415V~
Rated Current	63,80,100,125
Rated Frequency	50/60Hz
Number of Poles	1,2,3,4P
Contact form	1-0-2
Electrical Life	1500 Cycles
Mechanical Life	8500 Cycles
Protection degree	lp20
Ambient Temperature	5℃~40℃
Terminal/Cable size	50mm²
Mounting	On DIN rail EN60715(35mm
Mounting	by means of fast clip device

Circuit Diagram

YCBZ-125-product-description3-1

Overall and Mounting Dimensions(mm)

YCBZ-125-product-description4-1

Write your message here and send it to us

Data Download

Catalog Manual Certificate Drawings

YCBZ Catalog

Download

YCBZ Manual

Download

Related Products

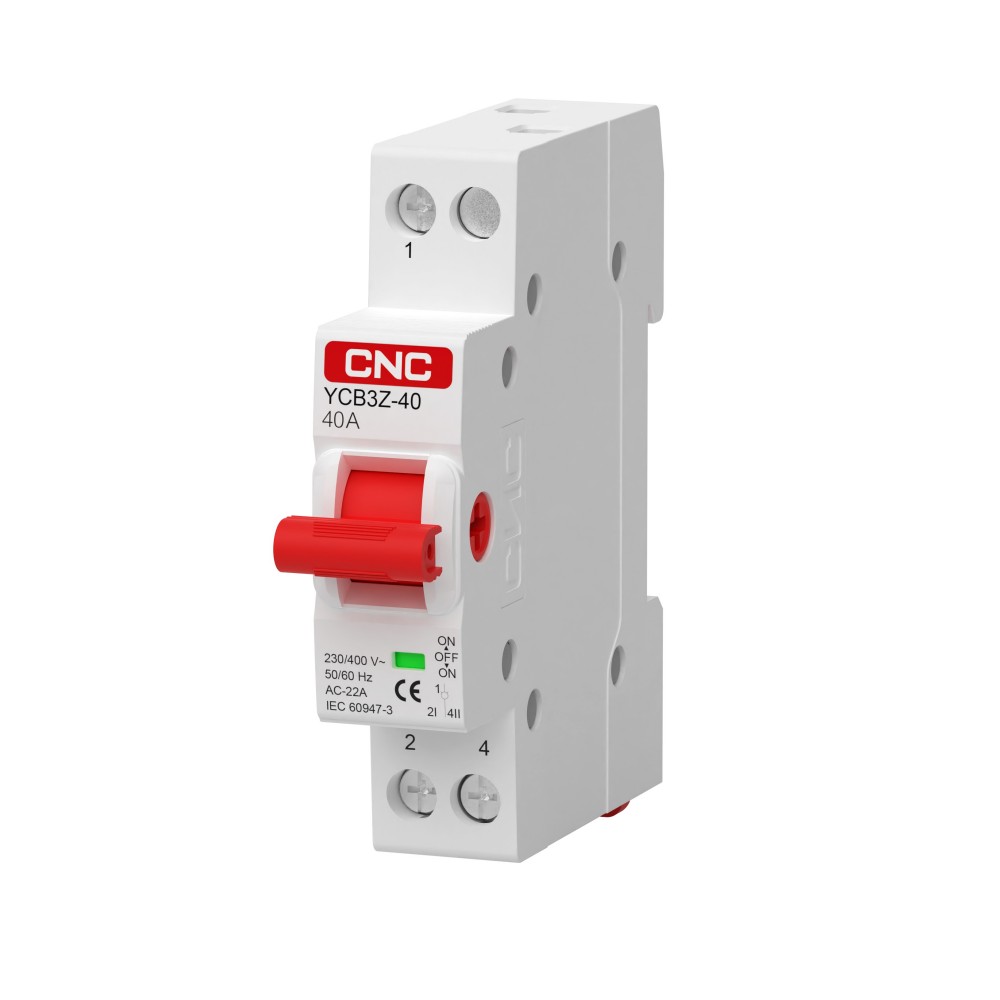

YCBZ-40 Change-over Switch
