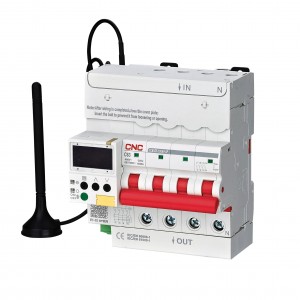

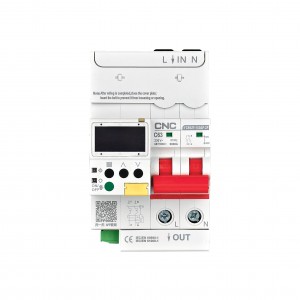

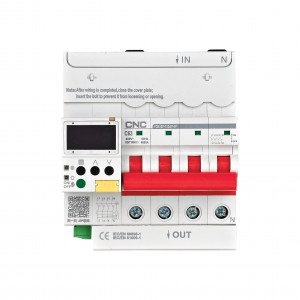

YCB9ZF-100AP Smart Circuit Breaker
The YCB9ZF – 100AP is an advanced smart IoT circuit breaker engineered to meet the modern demands of energy management and circuit protection. With a focus on safety, efficiency, and connectivity, it stands out as a reliable solution for various applications.
Contact Us
Product Details
The YCB9ZF-100AP is an IoT-enabled circuit breaker designed for modern energy management and industrial-grade safety. Combining remote control, real-time monitoring, and multi-layer protection, it ensures reliable power distribution across smart homes, factories, and commercial facilities.
● Multi-Protocol Connectivity
● Automation & Scheduling
● Ultra-Fast Tripping
● Multi-Layer Safety
● OLED Display
● Data Logging
● 20,000+ cycles
● IP20 Rating
● Plug-and-Play Design
● Anti-Tamper Cover
● Flexible Upgrades
Main Technical Parameters
| Item | YCB9ZF-100AP | |
| Product |  |
|
| Pol. | 1P+N,3P+N | 1P,2P,3P,4P |
| Rated voltage | Single-phase AC230V,50/60Hz;Three-phase AC440V,50/60Hz | |
| Rated current | 32A,63A,100A | |
| Residual operating current | 30-500mA | |
| Short circuit breaking capacity | Icn=lcs=6kA | |
| Mechanical life | More than 20000 times | |
| Electrical life | More than 6000 times | |
| Action time | Leakage action less than 100ms; Closing time is less than 1.5s and opening time is less than 1S |
|
| Protection grade | IP20 | |
| Operating environment temperature | 40℃~70℃ | |
| Principle of action process | Under normal condition of voltage leakage:
If the device is in the state of breaking,the device will not close automatically,but can only close Under abnormal voltage leakage: If the equipment is in the closing state,the equipment will automatically open,and voltage is |
|
| Remove lock | After manual on-site troubleshooting,remove the safety lock,push back the safety lock lever,and try to manually operate the closing and opening button once.Is the closing successful? If the closing is not successful,check whether the equipment is in arrears or other circumstances to perform the opening; |
|
| Safety lock | After manual on-site troubleshooting,remove the safety lock,push back the safety lock lever,and try to manually operate the closing and opening button once.Is the closing successful? When the safety lock lever is not pulled out,the equipment is in operation mode:when the safety lock is pulled out,the equipment is in maintenance mode and can be repaired only after padlock is needed.The safety lock and the mechanical structure of the circuit breaker can not be closed even if manually or remotely controlled,so as to ensure the personal safety of the maintenance personnel. |
|
| ltem | Data |
| Product |   |
| Thermo-magnetic release characteristic | C type(Other types can be customized) |
| Rated current In | 63A,100A |
| Rated short-circuit capacity Icn | 6kA |
| Short-circuit protection | When there is short circuit fault,it can trip within 100ms |
| Leakage protection | When there is leakage fault,it can trip within 100ms |
| Leakage protection value | 30~500mA can be set freely |
| The leakage self-inspection | According to the actual use,can set the day,hour and minute |
| Over and under voltage protection | When there is over or under voltage fault,it can trip after 3s(0~99s can be set); over-voltage set value:250~320V;under-voltage set value:100~200V |
| On-delay | When there is power,the switch will be automatically closed,0~99s can be set |
| Rated current setting | 1A~1In |
| Overload delay protection | 0~99s can be set |
| Over temperature protection | 0~120℃ can be set,OFF-delay time 0~99s can be set |
| Under power | The amount of load change can be set,OFF-delay time 0~99s can be set |
| Over power | The amount of load change can be set,OFF-delay time 0~99s can be set |
| Power limit | Reach limit power,OFF-delay time 3s,(0~99s can be set) |
| Timing control | 5 groups of times can be set |
| Imbalance | Percentage can be set for both voltage and current,OFF-delay time 0~99s can be set |
| Record | Locally queried 680 switch event logs |
| Display | Chinese and English Menu |
| Operation times | Record various operation times of circuit breaker to determine whether the circuit breaker is within ts effective life |
| Maintain | Set self check,device reset,power reset,record reset,synchronize clock,restart device, restore system default,etc |
| Check | Local view of voltage,current,leakage current,temperature,active power,reactive power, apparent power,power factor,cumulative electricity,daily electricity (view 7-day record) |
| Manual automatic integrated control | Mobile phone APP or PC control,can be controlled by the button, can also be controlled through the handle |
| Cover plate,pull rod | It has the function of preventing electricity-stolen,maintenance and overhauls dosed by mistake. |
| Communication mode | RS485 standard;4G,WIFI,NB,RJ45 optional |
| Remote Software Upgrade | According to the actual situation,customized procedures to achieve remote update and upgrade |
| The following functions can be set to open,close,alarm or trip functions |
overvoltage protection,undervoltage protection,overload protection,automatic closing, power off protection,remote control,open cover protection,under load protection,over power protection,under power protection,early warning function,timing self -check, warning allowed,gear return,high temperature protection,timing control,open phase protection,fault phase protection,voltage imbalance,current imbalance |
