YC Cooling Fan
YC Cooling Fan
1. Overload protection
2. Short circuit protection
3. Controlling
4. Used in residential building, non-residential building, energy source industry and infrastructure.
5. According to the type of instantaneous release classified as follows : type B(3-5)ln, type C(5-10)ln, type D(10-20)ln
2. Short circuit protection
3. Controlling
4. Used in residential building, non-residential building, energy source industry and infrastructure.
5. According to the type of instantaneous release classified as follows : type B(3-5)ln, type C(5-10)ln, type D(10-20)ln
Conatct Us
Product Details

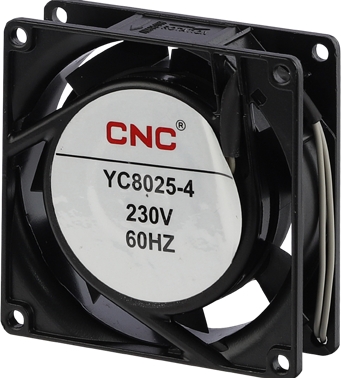

Size:80mm×80mm×25mm
Airflow:24~393/hr 14~23CFM Weight:208g
Noise:22~30dBA
Operation Temperature:-10°C~+65°C
Technical data
| Type | Bearing form | Voltage (VAC) | Frequency (Hz) |
Current (AMP) | Power (Watts) | Speed (RPM) |
Noise (dBA) | Air volume | |
| m³/hr | CFM | ||||||||
| YC8025-1 | Sleeve | 110 | 50/60 | 0.13 | 13 | 2300/2600 | 27/30 | 32/39 | 19/23 |
| YC8025-2 | 220 | 0.07 | |||||||
| YC8025-3 | Ball | 110 | 0.13 | ||||||
| YC8025-4 | 220 | 0.07 | |||||||

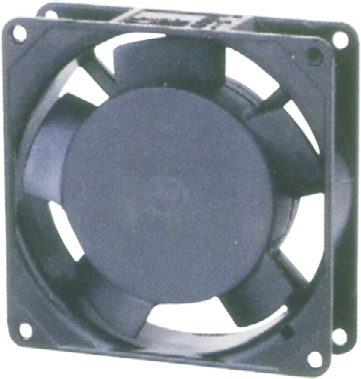

Size:92mm×92mm×25mm
Airflow:37~583/hr 22~34CFM Weight:268g
Noise:28~40dBA
Operation Temperature:-10°C~+65°C
Technical data
| Type | Bearing form | Voltage (VAC) | Frequency (Hz) |
Current (AMP) | Power (Watts) | Speed (RPM) |
Noise (dBA) | Air volume | |
| m³/hr | CFM | ||||||||
| YC9225-1 | Sleeve | 110 | 50/60 | 0.14 | 13 | 2300/2600 | 34/40 | 47/58 | 28/34 |
| YC9225-2 | 220 | 0.07 | |||||||
| YC9225-3 | Ball | 110 | 0.14 | ||||||
| YC9225-4 | 220 | 0.07 | |||||||

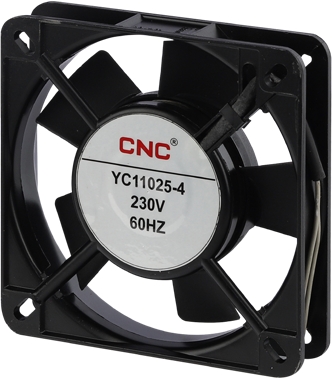

Size:110mm×110mm×25mm
Airflow:70~100m3/hr 41~59CFM
Weight:304g
Noise:30~41dBA
Operation Temperature:-10°C~+65°C
Technical data
| Type | Bearing form | Voltage (VAC) | Frequency (Hz) |
Current (AMP) | Power (Watts) | Speed (RPM) |
Noise (dBA) | Air volume | |
| m³/hr | CFM | ||||||||
| YC11025-1 | Sleeve | 110 | 50/60 | 0.2 | 18 | 2300/2600 | 35/41 | 35/41 | 49/59 |
| YC11025-2 | 220 | 0.1 | |||||||
| YC11025-3 | Ball | 110 | 0.2 | ||||||
| YC11025-4 | 220 | 0.1 | |||||||
Size:120mm×120mm×25mm
Airflow:76~112m3/hr 45~66CFM
Weight:314g
Noise:31~42dBA
Operation Temperature:-10°C~+65°C
Technical data
| Type | Bearing form | Voltage (VAC) | Frequency (Hz) |
Current (AMP) | Power (Watts) | Speed (RPM) |
Noise (dBA) | Air volume | |
| m³/hr | CFM | ||||||||
| YC12025-1 | Sleeve | 110 | 50/60 | 0.2 | 18 | 2300/2600 | 39/42 | 96/112 | 57/66 |
| YC12025-2 | 220 | 0.1 | |||||||
| YC12025-3 | Ball | 110 | 0.2 | ||||||
| YC12025-4 | 220 | 0.1 | |||||||

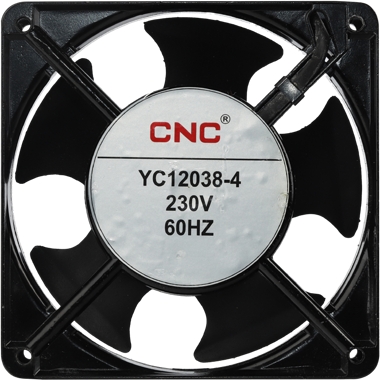

Size:120mm×120mm×38mm
Airflow:134~204m3/hr 79~120CFM
Weight:600g
Noise:39~50dBA
Operation Temperature:-10°C~+105°C
Technical data
| Type | Bearing form | Voltage (VAC) | Frequency (Hz) |
Current (AMP) | Power (Watts) | Speed (RPM) | Noise (dBA) | Air volume | |
| m³/hr | CFM | ||||||||
| YC12038-1 | Sleeve | 110 | 50/60 | 0.25 | 24 | 2300/2600 | 45/50 | 180/204 | 106/120 |
| YC12038-2 | 220 | 0.14 | 22 | ||||||
| YC12038-3 | 380 | 0.09 | 22 | ||||||
| YC12038-4 | Ball | 110 | 0.25 | 24 | |||||
| YC12038-5 | 220 | 0.14 | 22 | ||||||
| YC12038-6 | 380 | 0.09 | 22 | ||||||
Size:135mm×135mm×32mm
Airflow:156~197m3/hr 92~115CFM
Weight:595g
Noise:44~50dBA
Operation Temperature:-10°C~+65°C
Technical data
| Type | Bearing form | Voltage (VAC) | Frequency (Hz) |
Current (AMP) | Power (Watts) | Speed (RPM) |
Noise (dBA) | Air volume | |
| m³/hr | CFM | ||||||||
| YC125FZY1-S | Sleeve | 110 | 50/60 | 0.34 | 25 | 2400/2800 | 44/50 | 156/197 | 92/115 |
| YC125FZY2-S | 220 | 0.17 | |||||||
| YC125FZY3-S | 380 | 0.1 | |||||||
Size:135mm×135mm×38mm
Airflow:141~205m3/hr 83~122CFM Weight:555g
Noise:41~53dBA
Operation Temperature:-10°C~+105°C
Technical data
| Type | Bearing form | Voltage (VAC) | Frequency (Hz) |
Current (AMP) | Power (Watts) | Speed (RPM) |
Noise (dBA) | Air volume | |
| m³/hr | CFM | ||||||||
| YC13538-1 | Sleeve | 220 | 50/60 | 0.18 | 25 | 2400/2800 | 46/53 | 165/205 | 92/122 |
| YC13538-2 | 380 | 0.11 | |||||||
| YC13538-3 | Ball | 220 | 0.18 | ||||||
Size:172mm×150mm×39mm
Airflow:330~375m3/hr 194~220CFM
Weight:655g
Noise:56~60dBA
Operation Temperature:-10°C~+70°C
Technical data
| Type | Bearing form | Voltage (VAC) |
Frequency (Hz) |
Current (AMP) |
Power (Watts) |
Speed (RPM) |
Noise (dBA) |
Air volume | Capacitor | |
| m³/hr | CFM | |||||||||
| YC145FZY1-S | Ball | 110 | 50/60 | 0.36 | 30 | 2400/2800 | 56 | 330/375 | 194/220 | 3.3uf/250v |
| YC145FZY2-S | 220 | 0.18 | 1.0uf/500v | |||||||
| YC145FZY3-S | 380 | 0.1 | 25 | 0.47uf/630v | ||||||

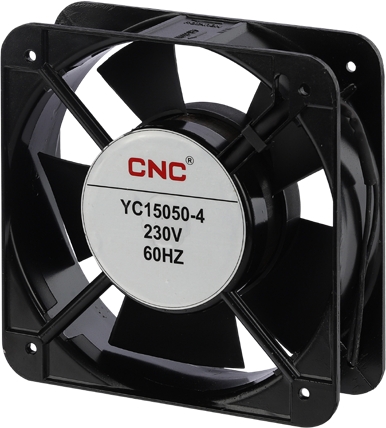

ize:150mm×150mm×50mm
Airflow:373~501m3/hr 220~295CFM
Weight:1200g
Noise:50~59dBA
Operation Temperature:-10°C~+65°C
Technical data
| Type | Bearing form | Voltage (VAC) | Frequency (Hz) |
Current (AMP) | Power (Watts) | Speed (RPM) |
Noise (dBA) | Air volume | |
| m³/hr | CFM | ||||||||
| YC15050-1 | Sleeve | 110 | 50/60 | 0.4 | 38 | 2300/2600 | 54/59 | 299/336 | 176/198 |
| YC15050-2 | 220 | 0.22 | |||||||
| YC15050-3 | 380 | 0.12 | |||||||
| YC15050-4 | Ball | 220 | 0.22 | 49/54 | |||||
| YC15050-5 | 380 | 0.12 | |||||||
Size:172mm×150mm×50mm
Airflow:330~375m3/hr 194~220CFM Weight:655g
Noise:56~60dBA
Operation Temperature:-10°C~+70°C
Technical data
| Type | Bearing form | Voltage (VAC) | Frequency (Hz) |
Current (AMP) | Power (Watts) | Speed (RPM) |
Noise (dBA) | Air volume | |
| m³/hr | CFM | ||||||||
| YC15050-1 | Sleeve | 110 | 50/60 | 0.4 | 38 | 2300/2600 | 54/59 | 299/336 | 176/198 |
| YC15050-2 | 220 | 0.22 | |||||||
| YC15050-3 | 380 | 0.12 | |||||||
| YC15050-4 | Ball | 220 | 0.22 | 49/54 | |||||
| YC15050-5 | 380 | 0.12 | |||||||

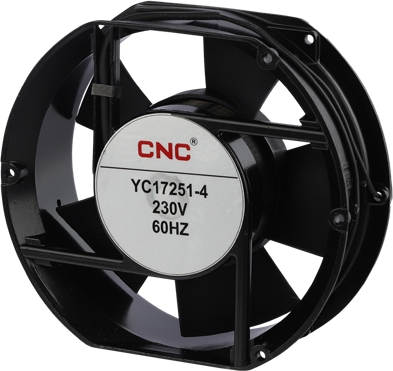

Size:172mm×172mm×50mm
Airflow:373~501m3/hr 200~295CFM Weight:1200g
Noise:50~59dBA
Operation Temperature:-10°C~+65°C
Technical data
| Type | Bearing form | Voltage (VAC) | Frequency (Hz) |
Current (AMP) | Power (Watts) | Speed (RPM) |
Noise (dBA) | Air volume | |
| m³/hr | CFM | ||||||||
| YC17252-1 | Sleeve | 110 | 50/60 | 0.4 | 38 | 2300/2600 | 54/59 | 299/336 | 176/198 |
| YC17252-2 | 220 | 0.22 | |||||||
| YC17252-3 | 380 | 0.12 | |||||||
| YC17252-4 | Ball | 220 | 0.22 | 49/54 | |||||
| YC17252-5 | 380 | 0.12 | |||||||

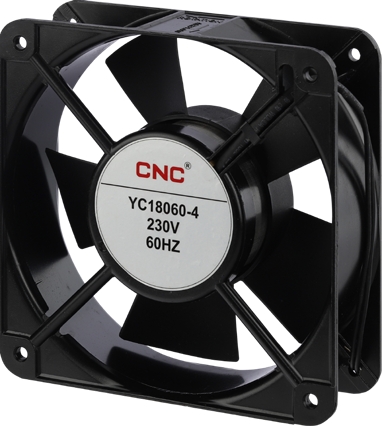

Size:180mm×180mm×60mm
Airflow:86~671m3/hr 345~395CFM
Weight:1200g
Noise:50~59dBA
Operation Temperature:-10°C~+65°
Technical data
| Type | Bearing form | Voltage (VAC) | Frequency (Hz) |
Current (AMP) | Power (Watts) | Speed (RPM) |
Noise (dBA) | Air volume | |
| m³/hr | CFM | ||||||||
| YC18060-1 | Ball | 220 | 50/60 | 0.23 | 55 | 2400/2700 | 63/68 | 586/671 | 345/395 |
| YC18060-2 | 380 | 0.13 | |||||||

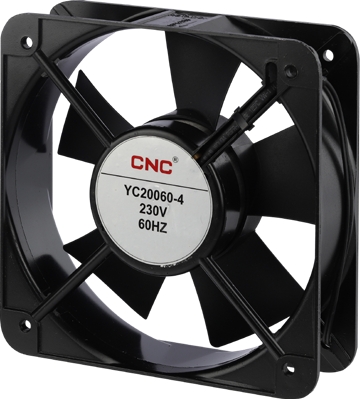

Size:200mm×200mm×60mm
Airflow:660~760m3/hr 388~447CFM
Weight:1600g
Noise:63~68dBA
Operation Temperature:-10°C~+65°C
Technical data
| Type | Bearing form | Voltage (VAC) | Frequency (Hz) |
Current (AMP) | Power (Watts) | Speed (RPM) |
Noise (dBA) | Air volume | |
| m³/hr | CFM | ||||||||
| YC20060-1 | Ball | 220 | 50/60 | 0.48 | 65 | 2600 | 70 | 586/671 | 345/395 |
| YC20060-2 | 380 | 0.3 | |||||||
Size:220mm×220mm×60mm
Airflow:612~7901m3/hr 360~465CFM
Weight:1600g
Noise:56~68dBA
Operation Temperature:-10°C~+65°C
Technical data
| Type | Bearing form | Voltage (VAC) | Frequency (Hz) |
Current (AMP) | Power (Watts) | Speed (RPM) |
Noise (dBA) | Air volume | |
| m³/hr | CFM | ||||||||
| YC22060-1 | Ball | 220 | 50/60 | 0.48 | 65 | 2600 | 70 | 586/671 | 345/395 |
| YC22060-2 | 380 | 0.3 | |||||||
Size:225mm×225mm×80mm
Airflow:612~7901m3/hr 360~465CFM
Weight:2200g
Noise:56~68dBA
Operation Temperature:-10°C~+105°C
Technical data
| Type | Bearing form | Voltage (VAC) | Frequency (Hz) |
Current (AMP) | Power (Watts) | Speed (RPM) |
Noise (dBA) |
Air volume | Phases | Capacitor | |
| m³/hr | CFM | ||||||||||
| YC200FZY1-S | Ball | 220 | 50/60 | 0.42 | 85 | 2500/2850 | 63/66 | 1050/1290 | 618/760 | 1 | 2uf/500v |
| YC200FZY2-S | 380 | 0.28 | 3 | / | |||||||
| YC200FZY3-S | 380 | 0.32 | 1 | 1.5uf/630v | |||||||
