Hybrid Grid Energy Storage Inverter YCDPO-III
Hybrid Grid Energy Storage Inverter YCDPO-III
YCDPO-III is a versatile hybrid inverter designed for grid-tied solar energy systems with storage. It integrates solar panels, batteries, and the utility grid, ensuring seamless energy management and backup during outages. input voltage range DC60~450V, output AC pure sine wave AC230V 50/60HZ, can drive 4~11KW single-phase load.
1. YCDPO III series is suitable for on-grid and off-grid applications.
2. Control and monitor your smart system on the move via our monitoring App and website
3. BMS Communication for lithium battery
4. Accessible through a LCD touch screenand through the web. Two outputs for smart load management
5. Built-in anti-dust kit for harsh environment AC overcurrent,AC overvoltage,overtemperature protection
6. Charge from the grid at off-peak time whenenergy is cheaper and discharge at peak timewhen energy is more expensive.
Contact Us
Product Details
General
YCDPO-III is a versatile hybrid inverter designed for grid-tied solar energy systems with storage. It integrates solar panels, batteries, and the utility grid, ensuring seamless energy management and backup during outages. input voltage range DC60~450V, output AC pure sine wave AC230V 50/60HZ, can drive 4~11KW single-phase load.
Operating conditions
1. YCDPO III series is suitable for on-grid and off-grid applications.
2. Control and monitor your smart system on the move via our monitoring App and website
3. BMS Communication for lithium battery
4. Accessible through a LCD touch screenand through the web. Two outputs for smart load management
5. Built-in anti-dust kit for harsh environment AC overcurrent,AC overvoltage,overtemperature protection
6. Charge from the grid at off-peak time whenenergy is cheaper and discharge at peak timewhen energy is more expensive.
Type designation
| Product name | Rated power(W) | Battery charging voltage | ||
| YCDPO III | - | 4000 6000 8000 11000 |
- | 48 |
Technical date
| Model | YCDPO III-4000-48 | YCDPO III-6000-48 | YCDPO III-8000-48 | YCDPO II-11000-48 |
| Rated Power(W) | 4000VA/4000W | 6000VA/6000W | 8000VA/8000W | 11000VA/11000 W |
| AC INPUT | ||||
| Nominal Voltage(VAC) | 230VAC | |||
| Voltage Range(VAC) | 170~280VAC/90~280VAC | |||
| Frequency Range(Hz) | 50/60Hz | |||
| AC OUTPUT | ||||
| Surge power | 8000VA | 16000VA | 22000VA | |
| Output voltage(VAC) | 220VAC/230VAC/240VAC+5% | |||
| Rated frequency | 50/60Hz | |||
| Efficiency | 93% | |||
| Transfer Time | 10ms(For PersonalComputers):20ms (For Home Appliances) | |||
| BATTERY | ||||
| Battery Voltage(VDC) | 48 | |||
| Floating Charge Voltage(VDC) | 54 | |||
| Overcharge Protection(VDC) | 63 | |||
| Battery type | Lithium/Lead-acid | |||
| SOLAR CHARGER&AC CHARGER | ||||
| Max.PV array open circuit voltage(VDC) | 500VDC | |||
| Max.PV array power(W) | 5000W | 7000W | 11000W(5500W*2) | 13000W(6500*2) |
| MPPT input voltage range@operating(VDC) | 60~450 | |||
| Maximum input current | 27A | 27A*2(MAX 40A) | ||
| MPPT tracker/strings | 1 | 2 | ||
| Maximum solar charge current | 120A | 120A | 150A | |
| Maximum AC charge current | 100A | 120A | 150A | |
| Maximum charge current | 120A | 120A | 150A | |
| PROTECTION&FEATURE | ||||
| AC overcurrent | Yes | |||
| AC overvoltage | Yes | |||
| Over temperature protection | Yes | |||
| Smart load management | Yes | |||
| On Grid | Yes | |||
| Parallel function | 6 | |||
| CTAnti-backflow function | NO | YES | ||
| ENVIRONMENT | ||||
| Humidity | 5~90%RH (No Condensing) | |||
| Operating Temperature | -10℃ to 50℃ | |||
| Altitude | (2000m Derating) | |||
| Dimensions DxWxH(mm) | 466*313*136.5 | 553.6*432.5*147.4 | ||
| Net Weight(KG) | 9 | 10.5 | 18 | 18.4 |
| COMMUNICATION | ||||
| Display | Touch screen | |||
| Interface | Standard:RS232,USB;CAN&RS485;Optional:WiFi,Bluetooth | |||
| Safety standard | EN/IEC62109-1,EN/IEC62109-2 | |||
Product connector
Circuit block diagram

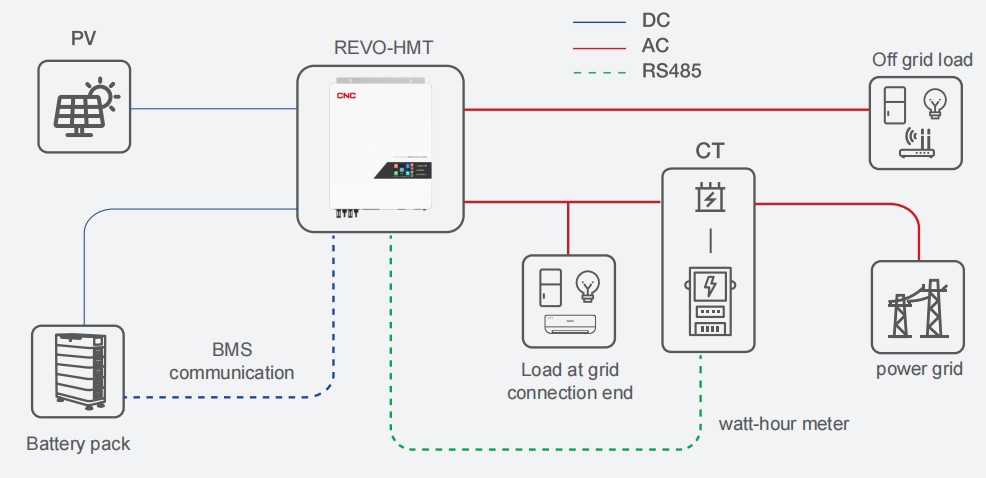

Product application diagram
